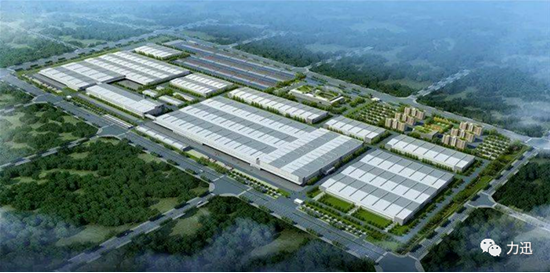

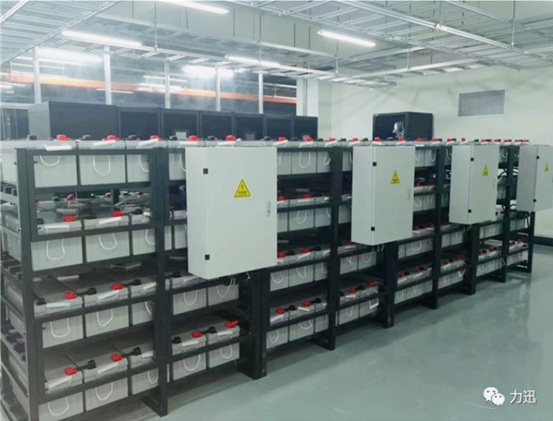

Recently, with strict testing and successful acceptance by experts on site, an uninterruptible power supply system consisting of three Netion MP 600kVA modular UPS (forming a 2+1 redundant configuration) and several sets of 12V200Ah high-power batteries has been officially put into use at a manufacturing factory of BYD Semiconductor. It will provide reliable 365 day x24 hour power guarantee for its precision IGBT and control IC semiconductor production and testing equipment.
Netion has been focusing on the fields of power supply, power electronics, and new energy power conversion for over 20 years, and will take this opportunity to make more contributions to the country's semiconductor strategy.
The semiconductor industry in China, Europe, America, Japan, and South Korea started at the same time 70 years ago, but due to various reasons, the vast majority of high-end chip market share is now occupied by Europe, America, Japan, and South Korea, and high technical barriers have been built. Especially in the past three years, Southeast Asia, as a chip manufacturing cluster, was affected by the COVID-19, which made the automobile industry, which had been under the pressure of chip shortage, even worse.
As a role model for the Chinese brand power event, BYD established the IC (Integrated Circuit) Design Department (now known as BYD Semiconductor) as early as 2002, almost starting at the same time as the car and battery plans! Today, 20 years later, in the face of the "chip shortage" problem in the automotive industry, BYD has taken it relatively calmly. When various car manufacturers are facing the "chip shortage" of reducing production and stopping production, BYD not only does not lack chips, but also sells chips to the outside world. Because BYD already has strong technological advantages in the field of intelligent control ICs, the comprehensive performance of IGBT chips has reached the advanced level of international mainstream manufacturers, and has high usage efficiency in electric drive applications.

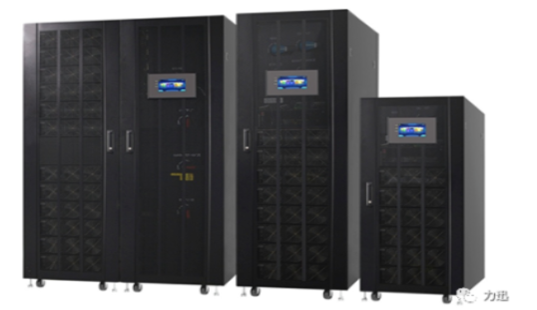

The power module of the Netion MP series modular UPS ranges from 20/30kVA for small power to 50/60/100kVA for medium to large power. A single cabinet can form a 20kVA-1000kVA power supply system (up to 4 parallel units, up to a maximum of 4MW).
Netion MP series modular UPS power supply is a leading fully digital power supply product in the industry, integrating the most advanced technological achievements in the field of power electronics and automatic control. With several patents, it has achieved breakthrough improvements in the power supply reliability, availability, and maintainability of key equipment.
Thanks to its excellent performance, high cost-effectiveness, and comprehensive after-sales service system, Netion MP series modular UPS has been widely used in data processing centers, computer rooms, telecommunications, transportation, healthcare, government, education, industry, and other fields.
Functional performance characteristics of Netion MP series modular UPS:
★ Efficient and energy-saving
The overall efficiency is greater than 96.5%, the input power factor is greater than 0.99, and the input current harmonics are less than 3%.
★ Shared battery pack
Shared battery pack, patented to ensure reliability and save significant investment.
★ Battery reverse connection protection function
Protection function to prevent reverse connection of positive and negative boards, protect the inverter from damage and reduce losses.
★ Super strong generator matching ability
It can be equipped with any type of generator, and compared to traditional 12 pulse power frequency UPS, at least 3 times the power of the generator needs to be selected. Netion MP series UPS only needs to use 1.3 times the power of the generator, which can greatly reduce procurement costs and operating costs.
★ Easy installation and maintenance
Each power module is designed to be hot swappable online, making it convenient for users to install, maintain, upgrade, and expand. Each power module is under autonomous control, without single point of failure risk. In the event of a fault in a single power module, it will automatically exit without affecting the operation of other modules and the normal power supply of the system.
★ Powerful carrying capacity
The MP series modular UPS power supply has excellent adaptability and can provide strong load carrying capacity for various types of linear and nonlinear loads. Each power module and cabinet system can provide load capacity comparable to any tower model, ensuring the application range of this series of products in various industries.
★ Centralized bypass design.
Centralized bypass design can effectively avoid the risk of system downtime caused by power module bypass failures.
★ With false load self detection function
By using the fake load testing, testers can simulate the load situation in the real environment and reduce the risk of system failure, system crash, etc. in actual operation.
★ Friendly interface
Chinese and English touch screen, rich in information, menu style management, at a glance. Convenient for users to operate and manage the UPS system in a simple and clear manner.
