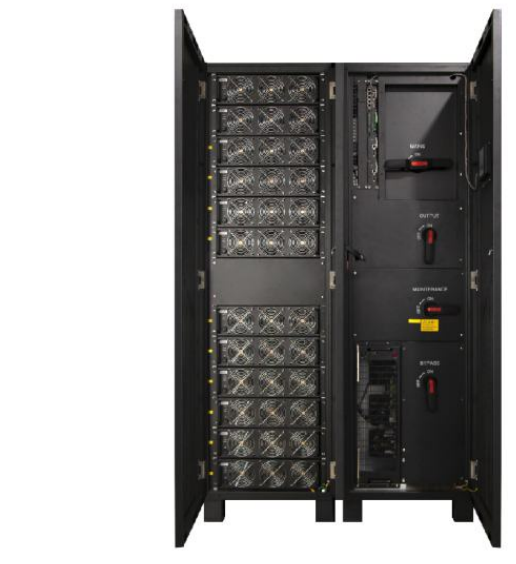

This product is applicable to a wide range of computer equipment , communication systems and automatic equipment.
High reliability design
Ultra wide input voltage range: 138 ~485Vac ( phase voltage: 80 ~280Vac) , no derating for use above 305Vac .
Energy saving , green and environmental protection
High input PF value , up to 0 .99. The three-level topology is adopted , and the overall efficiency is up to 96 .5% .
Parallel redundancy function
Direct parallel connection , 6 sets can be connected in parallel , and the parallel connection can share the battery pack.
Flexible battery configuration scheme
The number of battery cells can be set from 30 to 50. The single machine has large capacity charging power to meet the backup demand of long time delay.
Super load capacity
The output power factor is 1/0.9 . It can carry 100% unbalanced load. It has strong load adaptability and can carry pure inductive load and capacitive load close to full load.
Compatible with generator operation
The Power Walk In function can reduce the impact current of system startup and reduce the demand of parallel system for generator capacity.
LBS synchronization function
LBS synchronization function is provided to realize synchronization of two independent UPS systems and improve system reliability.
Intelligent management function
Support RS485 , SNMP , dry contact and CAN interface .
Model ( max . capacity) | MP200kVA/ MP300kVA/ MP400kVA/ MP500kVA/?MP600kVA/ MP800kVA/MP1200kVA |
Capacity | UPS cabinet | 80K~200K-20、90K~300K-30、120K~400K-40、200K~800K-50（60）、600K-100、1200K-100 |
Modular | 20kVA/30kVA/40kVA/50kVA/60kVA/100kVA |
Main circuit input |
|
Power supply system | Three phase four wire+grounding |
Rated voltage | 380/400V/415VAC |
Voltage range | 138~485 , 305~485Vac (no derating) , 138~305 Vac (linear derating) |
Frequency range | 40~70Hz |
Power factor | >0 .99 |
Input current harmonic | <3% ( 100% linear load) |
Bypass input |
|
Input voltage | 380/400V/415Vac |
Bypass range | Upper limit of bypass protection voltage:+25% (optional+5% , +10% , +20%) |
Lower limit of bypass protection voltage: -45% (optional -20% , -30%) |
Power supply system | Three phase five wire |
Bypass synchronous tracking range | 50/60Hz±10% |
Power Walking In | Support |
Bypass back filling | Support |
Generator connection | Support |
Output |
|
Rated voltage | 380/400V/415VAC ±1% |
Power factor | 1 .0/ 0 .9 |
Voltage accuracy | ± 1 % |
Output frequency | Mains mode | Synchronize with input; When the mains frequency exceeds the maximum ± 10% (± 1 % , ± 2 % , ± 4 % , ± 5 % can be set) , output frequency 50/60 (± 0 .2 %) Hz . |
Battery mode | 50/60(±0 . 1 %)Hz |
Load peak ratio | 3:01 |
Transfer time | Mains mode to bypass mode: 0ms (tracking) ; mains mode to battery mode: 0ms |
Overload capacity | Load ≤ 110%, maintain for 60min, ≤ 125%, maintain for 10min, ≤ 150%, maintain for 1min |
Output voltage distortion | ≤ 2 % ( linear load) |
≤ 4 % ( non-linear load) |
Efficiency |
|
Normal mode | ≥96 .5 % |
Communication interface |
|
UPS cabinet | RS232 , RS485 , 2 intelligent slots , dry contact |
Battery |
|
Battery voltage | ±180~ ±300Vdc (30~50 sections optional) |
Work environment |
|
working temperature | -10℃?~45℃ |
relative humidity | 0~95% non condensing |
Storage temperature | -20℃?~65℃ |
Altitude | ＜1500m |
Noise ( Db) | ＜70 ( 1 m away) |
Physical characteristics | 20/30/40kVA? ? ? ? ? 3 module cabinet | 20/30/40kVA? ? ? ? 5/6 module cabinet | 20/30/40kVA? ? ? ? ?10 module cabinet | 50/60kVA 4/6/8/10/12 module? ? ? ? ? ? ? ? ? ? ? ? ? cabinet | 100kVA 6/12 module? ? ? ? ? ? ? ? ? ?cabinet |
Dimension
W×D×H(mm) | System cabinet | 600 × 850 × 1400 | 600 × 850 × 1400 | 600 × 850 ×2000 | 600 × 850 ×2000/1200×850×2000 | ? ? ? ? ?800 ×1000×2000/? ? ? ? ? ?2200×1000×2000 |
Modular | 440 × 580 × 86 | 440 × 620 × 130 | 440 × 750 × 130 |
Weight (Kg) | System cabinet | 142 | 142 | 245 | 178/240/411/435/510 | 440/780 |
Modular | 18.5/21/22 | 33/33.2 | 49 |
Executive standards |
|
Executive standards | CE , EN/ IEC 62040-2 , EN/ IEC 62040-1-1 , YD/T2165-2017 |
*The above parameters may be adjusted and changed , please refer to the real object.? ?
*Comply with international EMC safety regulations .
